Why can CAD files like SolidWorks or STEP not run directly in WebGL?

CAD applications represent 3D geometry using mathematically continuous NURBS boundary representations (curves and parameters), which are resolution-independent. WebGL engines, however, can only render triangular polygon meshes rasterized on the GPU. Raw CAD tessellation typically produces 8 to 40+ million triangles with internal hardware like bolts and fasteners, crashing mobile WebGL viewports.

What is the target polygon budget for a production WebGL 3D configurator?

For commercial web configurators running at a guaranteed 60 FPS on iOS Safari and mid-range Android devices, the total rendered scene should stay under 100,000 triangles (ideally 15,000 to 80,000 triangles for the hero asset), with draw calls kept under 50 per frame.

How does texture channel packing reduce 3D configurator download size?

Standard PBR materials require multiple monochrome textures: Roughness, Metallic, and Ambient Occlusion (AO). Channel packing merges these three individual grayscale maps into the Red, Green, and Blue channels of a single ORM texture file. The GPU reads each channel independently, reducing texture file payload by 60% to 65% with zero visual quality loss.

What is the difference between Draco compression and KTX2 texture transcoding?

Draco compresses the geometric mesh (vertex positions, normals, texture coordinates, indices) by up to 70–85%, with native WebGL decompression. KTX2 with Basis Universal supercompresses textures and transcodes them at runtime directly into GPU-native memory formats (ASTC for iOS, ETC2 for Android, BC7 for desktop), saving VRAM and avoiding browser memory crashes.

CAD to WebGL: How Enterprise Brands Convert Heavy Engineering Files into Sub-2MB Interactive 3D Web Experiences (2026 Guide)

Your SolidWorks assembly is 1.2GB with 14 million polygons. Your mobile buyer's browser has 150MB of VRAM. This is the exact 4-step pipeline we use to bridge that gap — polygon decimation, normal baking, PBR channel packing, and Draco/KTX2 compression.

Scope CAD File ↗

⚡

★★★★★

1.2GB → 1.6MB

Geometry Translation

“The 1.2GB CAD file is not the problem. It is a manufacturing document. The web asset is a separate deliverable — built from the CAD reference, not derived from it.”

— Bilal Lania

Upload a Sample CAD File for Assessment ↗By Bilal Lania · CEO & Creative Director, Elipse Studio

CAD TO WEBGL✦SOLIDWORKS TO WEBGL✦POLYGON DECIMATION✦NORMAL MAP BAKING✦PBR CHANNEL PACKING✦DRACO & KTX2✦60 FPS MOBILE✦SUB-2MB PAYLOAD✦ELIPSE STUDIO✦CAD TO WEBGL✦SOLIDWORKS TO WEBGL✦POLYGON DECIMATION✦NORMAL MAP BAKING✦PBR CHANNEL PACKING✦DRACO & KTX2✦60 FPS MOBILE✦SUB-2MB PAYLOAD✦ELIPSE STUDIO✦

The CAD-to-Web Paradox

When engineering opens an 800MB–1.4GB SolidWorks assembly, they conclude it cannot run in a browser. They are right about the raw file, but wrong about the conclusion.

A production-grade CAD assembly contains internal bolts, bracket assemblies, and tolerance surfaces built for manufacturing accuracy. WebGL only renders triangles. Attempting to push raw CAD tessellation into a browser floods mobile GPUs with 14M+ triangles and internal hardware the buyer will never see.

14.2M → 58K TrisSub-2MB Payload60 FPS Mobile

Launch KIA Configurator

The CAD to WebGL master pipelineElipse Studio · October 2026

Automated polygon decimation and quad retopology

A typical CAD assembly wastes 30–60% of its polygon budget on invisible internal fasteners, brackets, and bolts. We strip internal geometry first, reducing raw count by over 50% immediately.

For remaining exterior surfaces, we combine automated decimation with manual quad retopology. Rebuilding topology along the product's natural edge flow targets 15,000 to 80,000 triangles for a complete 3D web configurator hero asset — low enough to sustain 60 FPS on mobile, high enough to retain crisp silhouettes.

Polygon decimation and vehicle chassis retopology

Launch Zeus Configurator

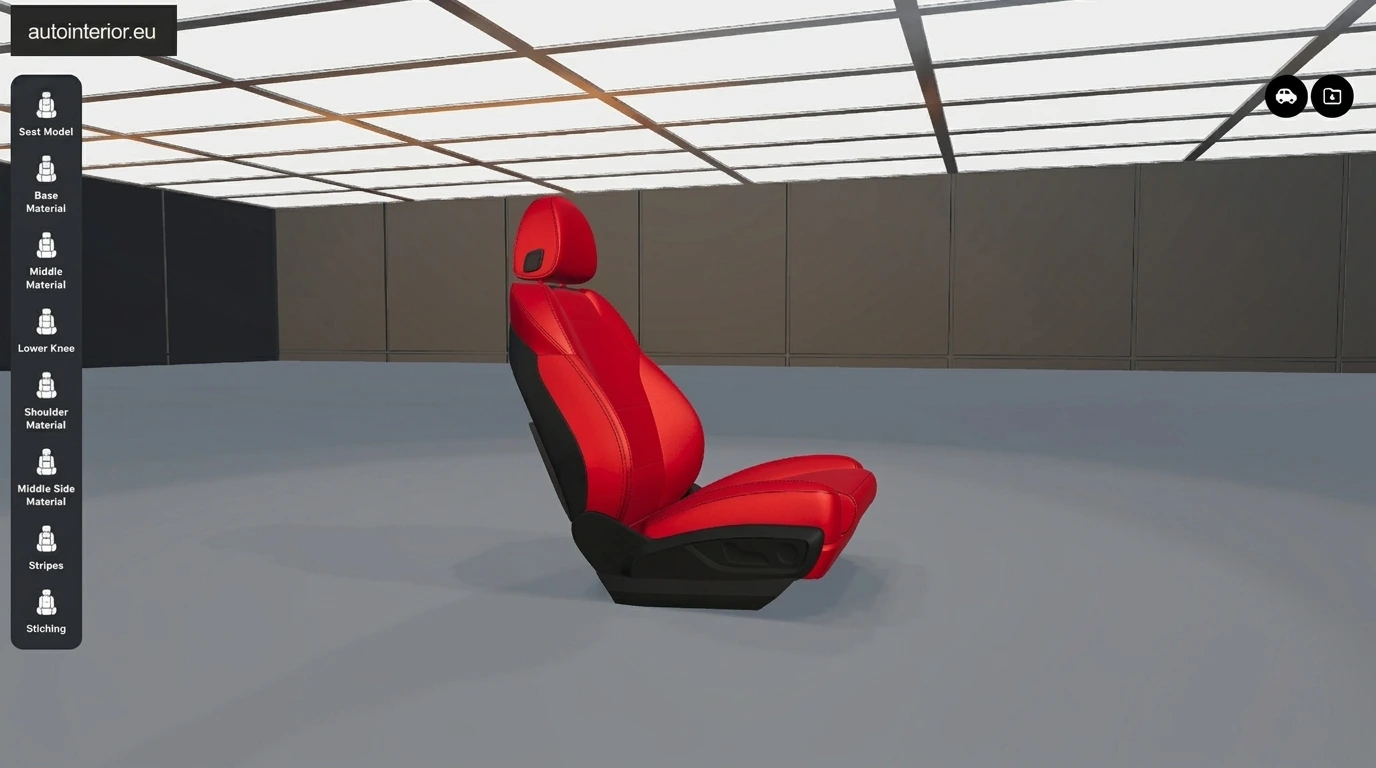

High-to-low normal map and ambient occlusion baking

Reducing triangles removes surface micro-details: machined bevels, subtle panel seams, and brushed metal grain. Without them, a product renders like an unfinished plastic model.

We retain the original high-poly CAD reference to bake surface details into a tangent space normal map. The GPU calculates light reflections across virtual bevels that carry zero extra geometry. Concurrently, ambient occlusion (AO) is baked into recessed joints, providing realistic soft shadowing without costly real-time ray tracing.

Launch Seat Configurator

PBR texture channel packing (ORM workflow)

Standard PBR materials (Three.js, PlayCanvas) require Albedo, Roughness, Metallic, Normal, and Ambient Occlusion maps. Loading each as a separate file can bloat texture data to 30MB–50MB before compression.

Channel packing collapses three grayscale maps into the RGB channels of a single combined image: Roughness into Red, Metallic into Green, and AO into Blue (ORM). The GPU reads all three simultaneously, slashing texture payload by 60% to 65% with zero quality degradation.

Launch Interactive Showcase

Draco geometry, KTX2 compression & case study benchmark

The final compression stage applies Draco (compressing geometry by 70–85%) and KTX2 / Basis Universal (runtime GPU transcoding into ASTC/ETC2/BC7 to prevent iOS Safari VRAM crashes).

MetricRaw CADWeb-Ready

File Size1.24 GB→1.6 MB

Polygon Count14.2M→58,400 Tris

Mobile 4G LoadCrash→0.9 Seconds

iPhone 14 Safari0 FPS→60 FPS Stable

Turnaround: 11 working days. Deployed as an interactive 3D product experience across global ecommerce and distributor portals.

Launch Configurator

Closing reflections

Why your CAD file is the start of your web experience — not the barrier

The 1.2GB CAD file is not the problem. The problem is treating it as if it is a render-ready asset. It is a manufacturing document. The web asset is a separate engineering deliverable — built from the CAD reference, not derived from it.
