Unreal Engine 5 Pixel Streaming vs WebGL: The Enterprise Decision Framework for Interactive 3D in 2026

⚡

Every serious enterprise 3D project in 2026 reaches this architectural fork: client-side WebGL or cloud GPU pixel streaming via Unreal Engine 5. A structured decision framework built on our real Volvo, Jetour, and Kia production data.

★★★★★

0.8s vs 8.0s

Mobile Time to Interactive

“The decision isn’t which engine is better. It’s what your product’s complexity, device profile, and concurrent user economics demand at scale.”

— Elipse Studio Benchmark

Book a 15-min technical consultation ↗By Elipse Studio | October 2026

UNREAL ENGINE 5✦WEBGL 3D✦PIXEL STREAMING✦VOLVO S90 BENCHMARK✦JETOUR & KIA WEBGL✦AWS G5 CLOUD GPU✦SUB-2S ZERO LATENCY✦LUMEN RAY TRACING✦UNREAL ENGINE 5✦WEBGL 3D✦PIXEL STREAMING✦VOLVO S90 BENCHMARK✦JETOUR & KIA WEBGL✦AWS G5 CLOUD GPU✦SUB-2S ZERO LATENCY✦LUMEN RAY TRACING✦

Four-Part Architectural BreakdownElipse Studio · October 2026

Kia WebGL 3D Product Configurator interface

WebGL Benchmark: Kia 3D Configurator — Browser-native real-time 3D with zero streaming feesLaunch Kia Configurator

Executive Decision Matrix: WebGL vs UE5

The decision is usually made by whoever on the team has the most confident opinion — rather than by working through the actual variables: your product's visual complexity, your audience's device profile, your expected concurrent user load, and what a session costs you at scale.

Initial Load Latency: WebGL (Three.js / PlayCanvas) loads in 0.8–2.5s (progressive) vs UE5 taking 4–12s for stream negotiation and first frame.

Time to First Interaction: Sub-2s on 4G for WebGL vs 6–15s for UE5 including the WebRTC handshake.

Visual Fidelity Ceiling: WebGL achieves high PBR with custom shaders; UE5 reaches photorealism with real-time Lumen global illumination and sub-surface scattering.

Concurrency Cost: $0 server GPU cost for WebGL vs $0.52–$3.40/hour per active concurrent user on AWS GPU instances.

Best Architectural Fit: WebGL for consumer e-commerce and mobile retail; UE5 for high-ticket automotive ($60K+), luxury retail, and complex architectural visualization.

The True Cost of Cloud Pixel Streaming

Pixel streaming demos look spectacular. The AWS bill arrives three weeks later and looks spectacular for very different reasons. In enterprise deployments, web users don't run native Unreal on their device — UE5 runs on remote cloud GPUs and streams interactive video via WebRTC. That introduces four compounding cost layers:

1. AWS GPU Rates & Concurrency

AWS G5.2xlarge (A10G GPU, 8 vCPU) costs $1.212/hr — roughly $0.02 per active minute. In a standard architecture, 1 concurrent user = 1 dedicated GPU. A product launch with 200 simultaneous users requires $242/hr peak.

2. WebRTC Latency Budget (25–110ms)

GPU Render (8–16ms) + Encode (2–5ms) + Edge Transport (10–80ms) + Client Decode (2–8ms) + Display (16.7ms) = 25–110ms round-trip latency. On mobile touch screens, 110ms lag feels sluggish.

3. Idle Warm Pool Math ($3,490/Month)

Retail traffic peaks at lunch and evenings (5:1 ratio). Maintaining a 10-instance peak warm pool (6 hrs @ $72.72) and 2 off-peak instances (18 hrs @ $43.63) totals $3,490/month in GPU costs alone before bandwidth fees.

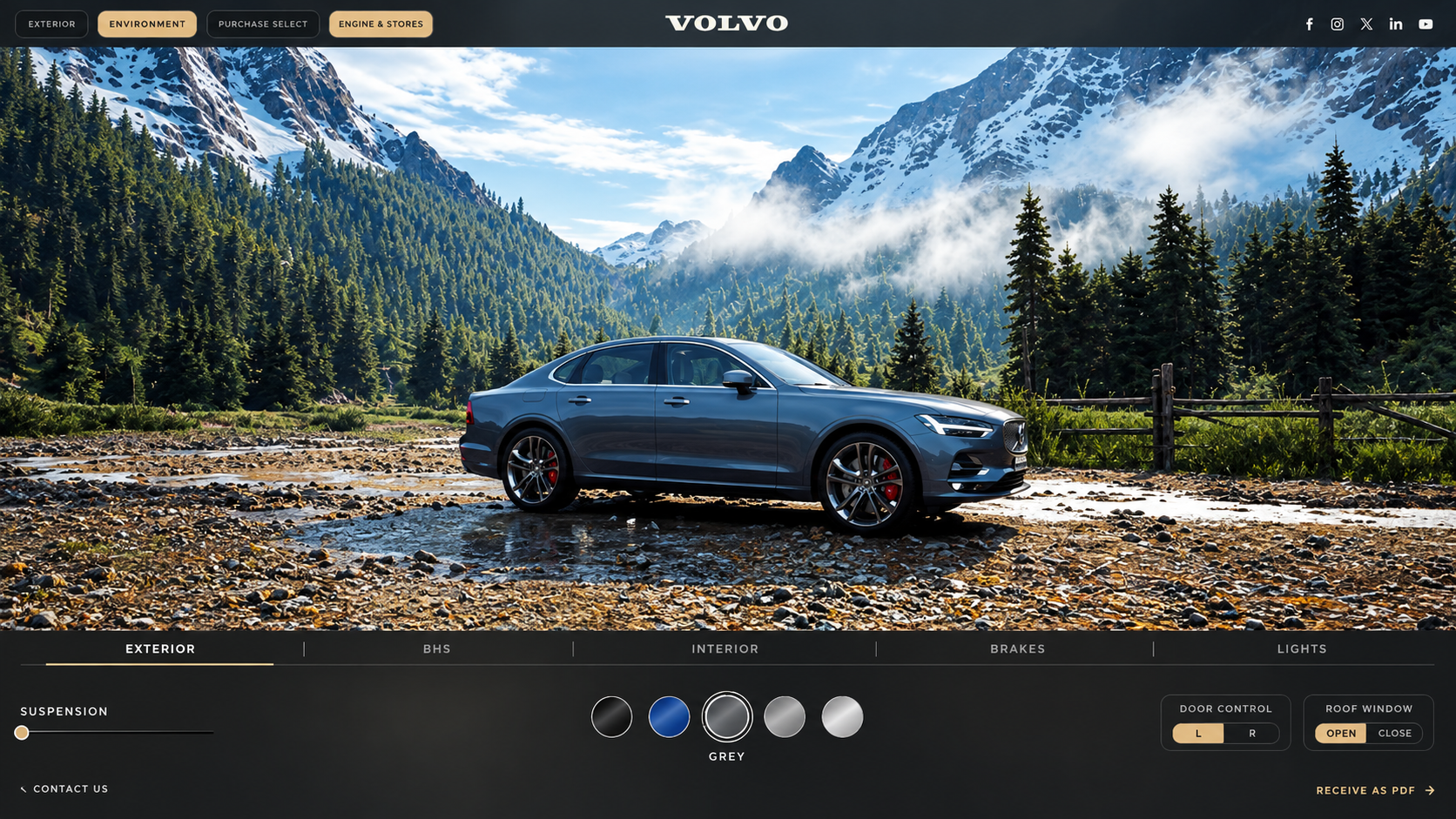

Volvo S90 Unreal Engine 5 Cloud Pixel Streaming UI

Unreal Engine 5 Cloud Pixel Streaming Benchmark: Volvo S90 on AWS G5.2xlarge node

Volvo S90 Unreal Engine 5 photorealistic ray tracing

Unreal Engine 5: Real-time ray-traced reflections on Volvo S90 paint and glass surfacesView Volvo Configurator

When Unreal Engine 5 Pixel Streaming Is Essential

Pixel streaming exists because there is a tier of visual experience that cannot be delivered in browser WebGL at acceptable quality — regardless of shader optimization. For web delivery, Unreal Engine cannot run directly in the browser; it streams video frames live from cloud GPUs:

High-Ticket Automotive: The Volvo S90 Benchmark

NVIDIA Iridescent shaders replicate multi-angle anisotropic metallic flake sparkles. Windscreen glass accurately reflects overhead lights and refractorily transmits interior materials. For a vehicle above $60,000 with a $2,000–$8,000 paint upgrade, a $0.61 per-session GPU cost is fully justified against order value.

Complex Architectural Visualisation & Materials

Lumen handles real-time indirect bounces for dynamic dawn-to-sunset lighting across luxury estates. Nanite streams 50–100 million CAD polygons without LOD reduction, while sub-surface scattering replicates authentic marble translucency.

Enterprise B2B Collaborative Sales

Guided sales demonstrations in boardroom environments where sales engineers present to procurement teams. Multiple stakeholders can route to the identical rendered stream with zero client GPU strain.

When WebGL Wins & The Hybrid Architecture

WebGL isn’t a compromise. For the vast majority of enterprise 3D applications, our browser-native WebGL configurators (like Jetour T2 and Kia) deliver the superior commercial outcome:

Browser-Native Performance at Sub-2MB

Heavy CAD assemblies are engineered into lightweight, progressive WebGL models. 1.4s time to first interaction on 4G, 60 FPS on mobile, 4-level LOD mesh decimation, Basis Universal texture compression, and custom 3-layer GLSL automotive paint shaders.

E-Commerce Mobile Conversion Advantage

Google data confirms each second above 2s drops conversion by 4–8%. WebGL avoids 8–12s stream startup delays, runs on flat CDN bandwidth with zero per-session GPU bills, and integrates natively into Shopify Plus cart and checkout contexts with zero iframe lag.

The Practical Hybrid Pattern

Deploy lightweight WebGL on the product page for instant mobile browsing (handling 95% of traffic), and offer an opt-in “Photoreal Studio View” (UE5 streaming) for desktop buyers on fast connections. A shared JSON session object preserves configured specifications across both engines.

WebGL Benchmark: Jetour T2 Customizer — Progressive client-side rendering with real-time paint switchesLaunch Jetour Configurator

Closing reflections

Talk to Us Before You Lock the Architecture

The decision between WebGL and UE5 pixel streaming is reversible in theory and exceptionally expensive in practice. Committing before validating concurrency math or visual thresholds costs months of rebuild time.
